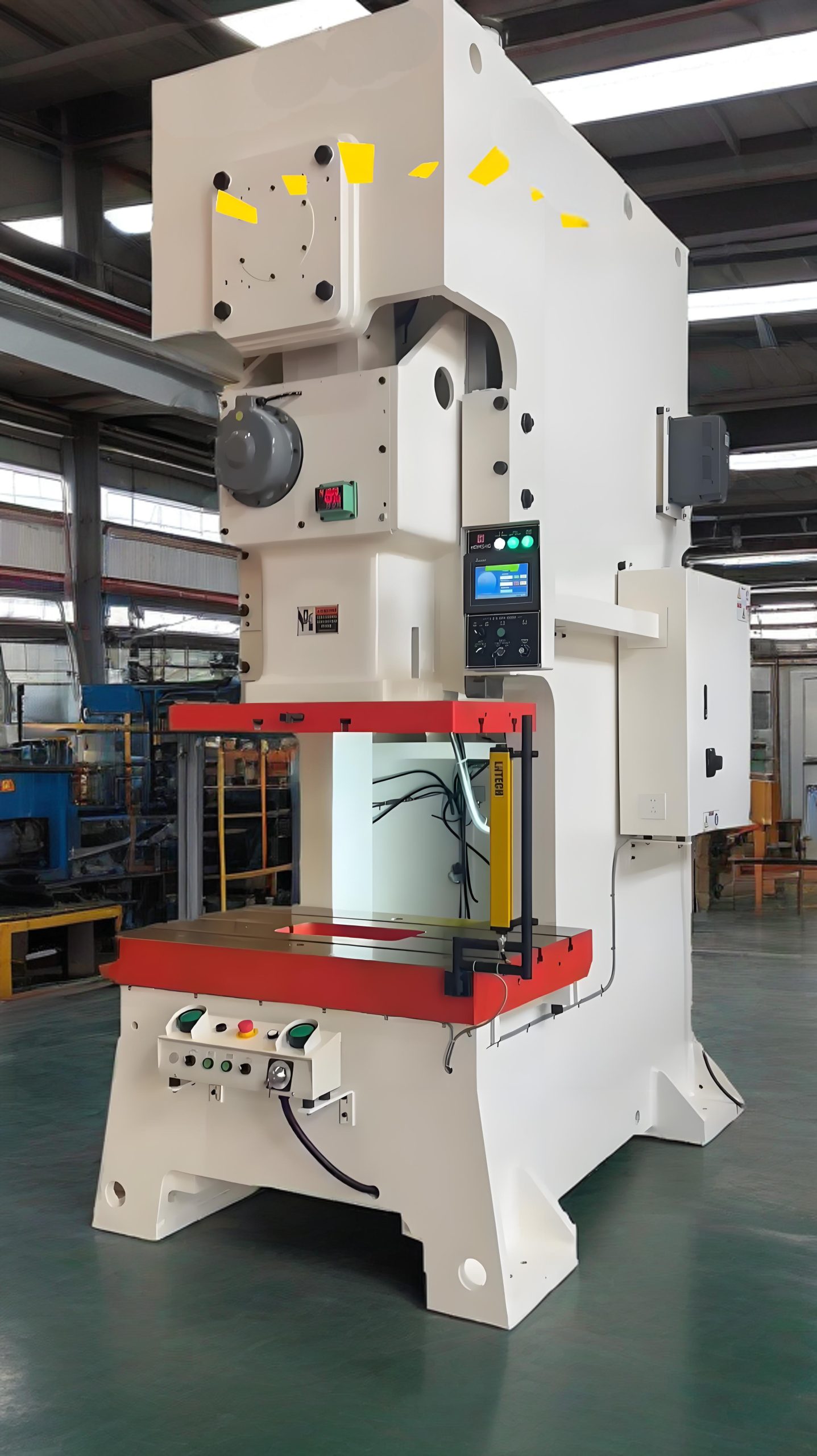

High quality JH-250T Shovel punch pneumatic puncher sheet metal forming
Pneumatic punching machine is a punching equipment that uses compressed air as a power source.
It converts the energy of compressed air into mechanical energy through a cylinder,
driving the slider to make up and down linear reciprocating motion,
thereby performing various processing on materials such as punching,
forming, shallow stretching, cutting, etc.
The frame
constructed from high-quality Q235A steel plates in an open C-shape design,
with a longitudinally mounted crankshaft for a compact structure and aesthetically pleasing appearance.
Dry pneumatic friction clutch
Equipped with a low-inertia combined dry pneumatic friction clutch, it converts the continuous rotation of the flywheel into controlled,
precisely stoppable intermittent punching motions, ensuring flexible operation along with stable performance, safety, and reliability.
Slider
adopts an elongated rectangular hexahedron guideway with alloy wear-resistant liners,
ensuring excellent stability and high guiding precision.
PLC
acts as the “brain” and “nerve center” of the pneumatic punch press.
It replaces complex relay control circuits in older machines by using internally stored programs to receive signals from various sensors.
Through logical judgment and computation,
it ultimately commands pneumatic solenoid valves and motors to achieve automated, precise, and safe control of the punch press.
